Hypoxic System
O2 range: 20.9% to 9.8%, ± 0.1%  Altitude:>up to 5000m, ±40m. (option up to 9000m)
Include
  Hypoxic hollow fiber membrane system   Refrigerated dryer   Pressure Vessel   Control valve system   Four-stage filters   Control panel for each room   Feedthrough   Alarm System   Safety fresh air inject system   Sound reducing device
More Details
Air Compressor System
  • Rotary screw type air compressor
  • Working pressure: 10 bar
  • Air flow rate: 120cfm@10bar
  • Pressure vessel: > 1000L capacity
  • Sound reducing silencers:
  • Air Compressor System
  • Hollow fiber membrane modules
  • Hypoxic air : 4%@O2
  • Working pressure: 8-10bar
  • Inlet: 3/8” thread
  • Outlet: 3/8” thread with pressure gauge
  • Control valve modules

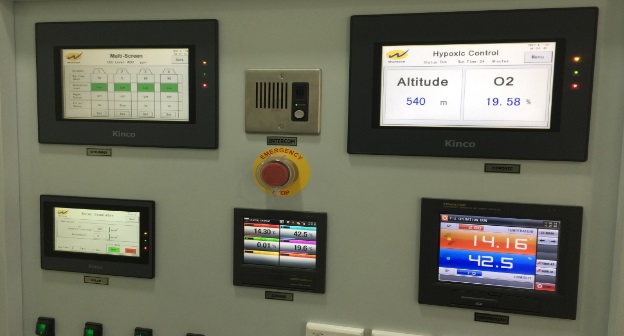

  • LCD Tounch Screen Controller
  • PLC: Siemen SR30-AE04
  • Display: Kinco 7", 10" or 15"
  • Operation mode: Fix mode or program mode
  • Setting: by altitude (m) or O2 (%)

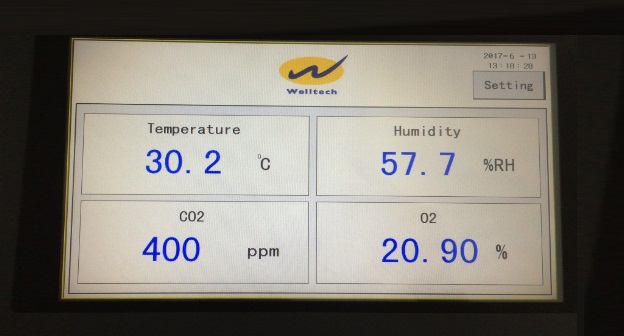

  • Display both altitude (m) and O2%
  • Multi-screen display available
  • User name and password access (option)
  • Alarm history record
  • Data recording on flash card
  • Sensor bias adjustment: 8-pieces adjustment
  • With reserve function
  • With remote control by tablet or mobile
  • Four Stage Filters
    Water filter Oil filter Ultra-oil filter With pressure gauge With pressure differential color indicatorWith auto drain With life display on air compressor

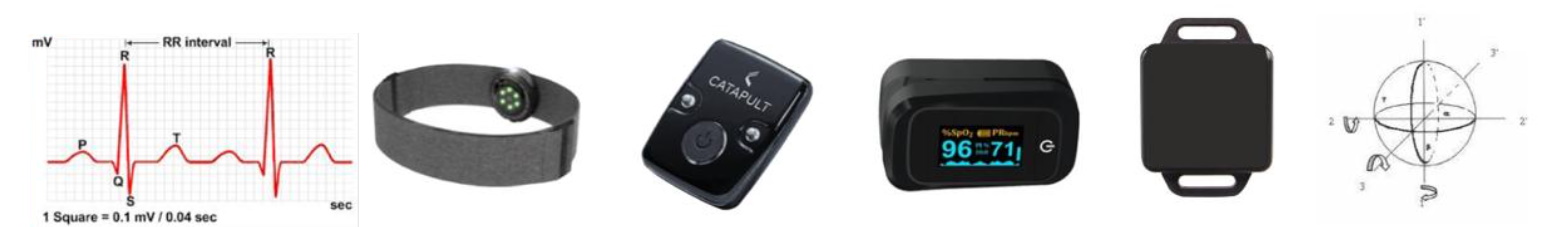

    Sensors
